The GW30 is a 2,780 kg mini excavator with a Yanmar 3TNV80F engine, a 0.068 m³ bucket, a 2,590 mm maximum digging depth and load-sensing hydraulics.
Discuss colours, branding, equipment options and compatible attachments with our team. OEM configurations are confirmed for your model and market.
Jiasheng Xinying manufactures mini excavators and remote-control crawler mowers with flexible configurations, standardized assembly and machine testing. From trial orders to mixed-container shipments, we support your business with export assistance, spare parts and remote technical guidance.
GW30 Mini Excavator Specifications
General Specifications
| Parameter | Unit | Value |
|---|---|---|
| Operating weight | kg | 2780 |
| Standard bucket capacity | m³ | 0.068 |
| Working device | — | Backhoe |
| Fuel tank capacity | L | 20 |
Engine
| Parameter | Unit | Value |
|---|---|---|
| Engine model | — | Yanmar 3TNV80F |
| Displacement | L | 1.267 |
| Rated power / speed | kW / rpm (PS / rpm) | 14.6/ 2400 (16.1 / 2300) |
| Maximum torque (source notation) | N·m / rpm | 67.4±1800 |
| Maximum engine oil capacity (usable) | L | 3.4 |
Travel Speed and Digging Force
| Parameter | Unit | Value |
|---|---|---|
| Maximum travel speed | km/h | 2-3.5 |
| Swing speed | rpm | 9.5 |
| Maximum gradeability | ° | 30 |
| Bucket digging force | kN | 20 |
| Arm digging force | kN | 13.5 |
| Maximum tractive force | kN | 23 |
Undercarriage
| Parameter | Unit | Value |
|---|---|---|
| Track material | — | Rubber |
| Track model | — | 300 × 52.5 × 80 |
| Track tensioning device | — | Grease cylinder |
| Ground pressure | kPa | 27 |
Hydraulic System
| Parameter | Unit | Value |
|---|---|---|
| Pump type | — | Piston pump |
| Working pressure | MPa | 24.5 |
| Flow rate | L/min | 67.2 |
| Swing motor type | — | Piston motor |
| Travel motor type | — | Not specified |
| Control valve type | — | Load-sensing valves |
| Hydraulic oil tank capacity | L | 18 |
Main Dimensions
| Parameter | Unit | Value |
|---|---|---|
| a — Wheelbase | mm | 1520 |
| b — Overall track length | mm | 1960 |
| c — Upper chassis ground clearance | mm | 260 |
| d — Rear counterweight swing radius | mm | 700 |
| e — Chassis width | mm | 1370/1570 |
| f — Track width | mm | 300 |
| g — Rotary table height above ground | mm | 570 |
| h — Transport length | mm | 4100 |
| j — Total height | mm | 2440 |
| q — Overall bucket width | mm | 515 |
Operating Range
| Parameter | Unit | Value |
|---|---|---|
| A — Maximum digging radius at ground level | mm | 4640 |
| B — Maximum digging radius | mm | 4520 |
| C — Maximum digging depth | mm | 2590 |
| D — Maximum digging height | mm | 4370 |
| E — Maximum dumping height | mm | 3060 |
| F — Maximum vertical digging depth | mm | 2110 |
| G — Minimum turning radius | mm | 2250 |
| H — Maximum dozer blade lift height | mm | 260 |
| I — Maximum dozer blade digging depth | mm | 300 |
| RA — Right boom swing angle | ° | 50 |
| LA — Left boom swing angle | ° | 65 |

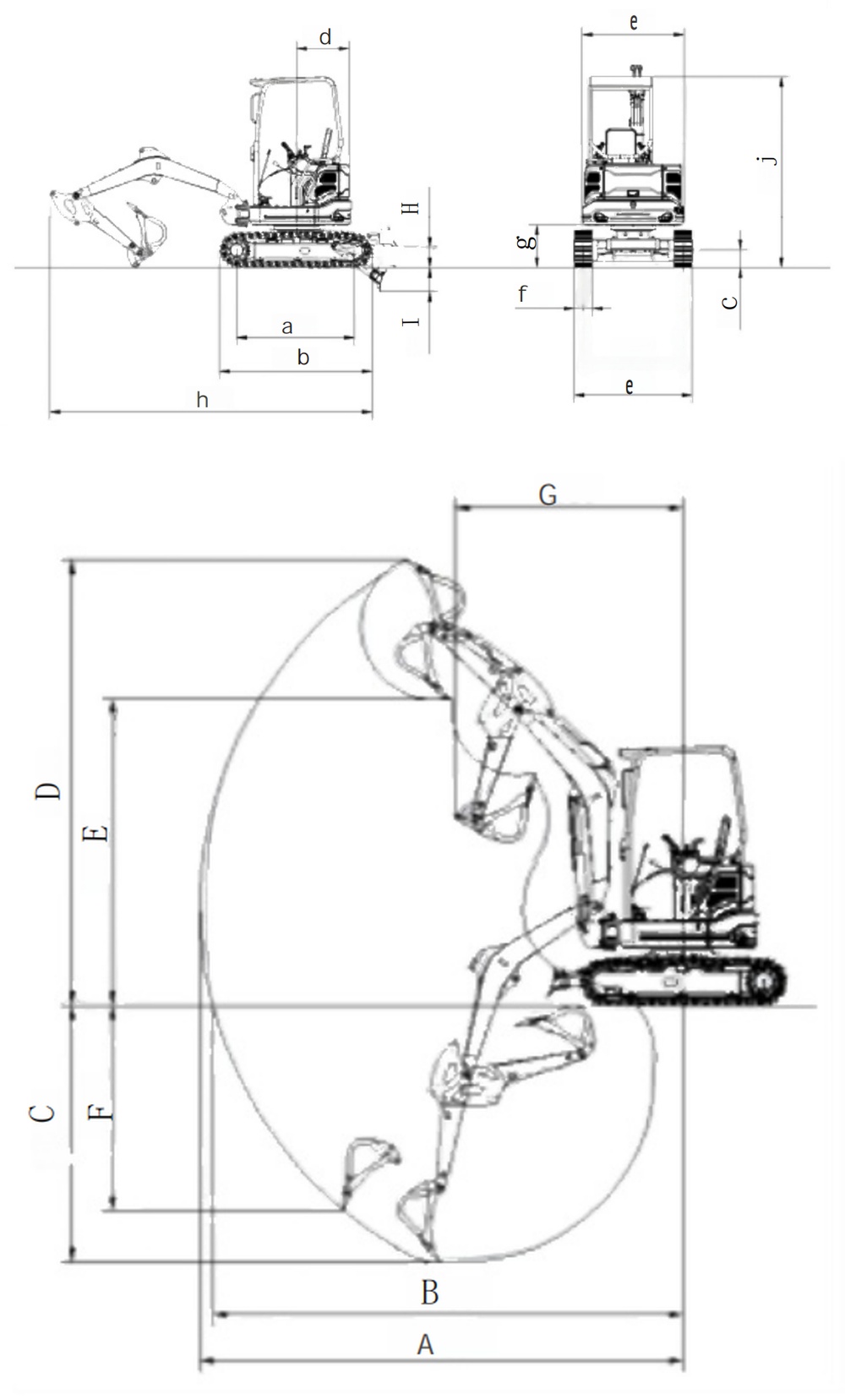

Dimensions and Operating Range Diagrams
